RPSD

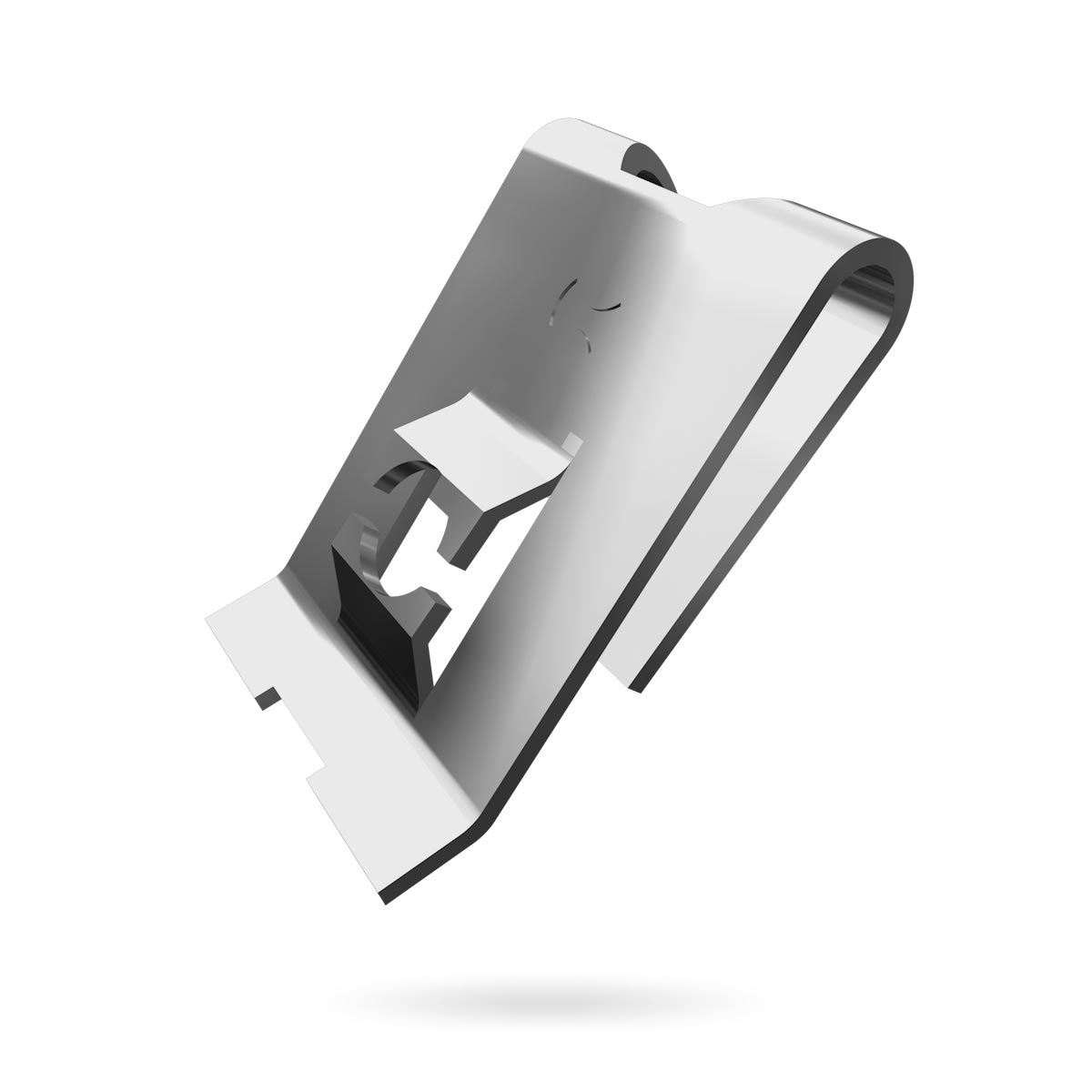

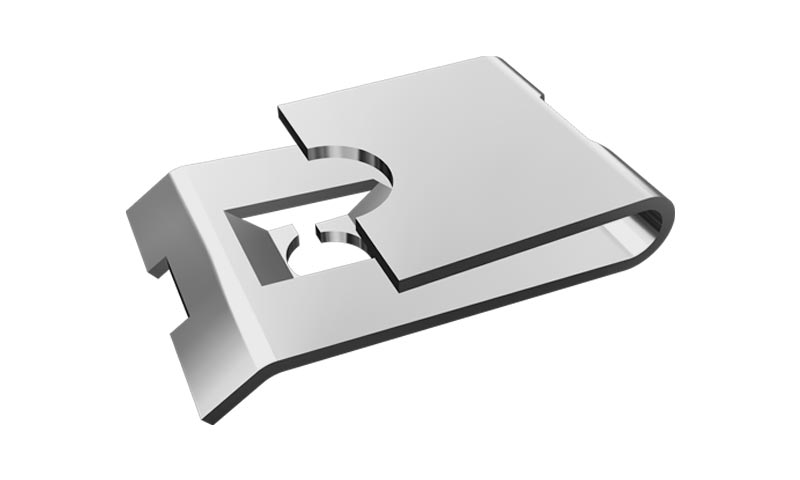

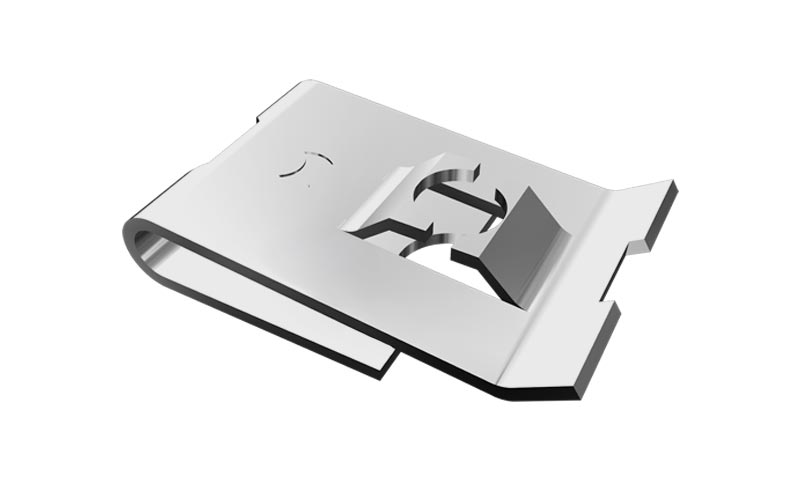

J-Type Nuts

Single-thread J-type lock nuts for self-tapping screws suitable for a variety of fastening applications.

This product is currently out of stock and unavailable.

Add to quote

Custom captive J-nuts available in a wide range of sizes

Our single thread J-type lock nuts for self-tapping screws, also known as captive J-nuts, are ideal for joining two or more flat components using a slot within the panel. Our catalog offers a wide range of sizes and thread types, including both Parker and metric. Available in a variety of finishes on request.

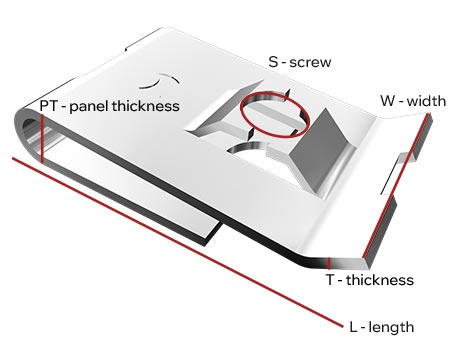

RPSD J-Type Nuts technical drawings

RPSD 06P.14.090.126 P (3,5 mm)9.014.50.51,2 - 1,6/RPSD - piastrine semidoppie per viti autofilettantiLogin to view
RPSD 06P.16.110.066 P (3,5 mm)11.016.50.60,6 - 1,5/RPSD - piastrine semidoppie per viti autofilettantiLogin to view
RPSD 06P.16.110.146 P (3,5 mm)11.016.50.61,4 - 2,0/RPSD - piastrine semidoppie per viti autofilettantiLogin to view
RPSD 06P.17.080.086 P (3,5 mm)8.017.00.60,8 - 1,5/RPSD - piastrine semidoppie per viti autofilettantiLogin to view
RPSD 08P.16.110.068 P (4,2mm)11.016.50.60,6 - 1,5/RPSD - piastrine semidoppie per viti autofilettantiLogin to view
RPSD 08P.16.110.148 P (4,2mm)11.016.50.61,4 - 2,0/RPSD - piastrine semidoppie per viti autofilettantiLogin to view
RPSD 08P.20.120.108 P (4,2mm)12.020.00.71,0 - 2,0/RPSD - piastrine semidoppie per viti autofilettantiLogin to view
RPSD 10P.15.160.0710 P (4,8 mm)16.015.50.80,7 - 1,2/RPSD - piastrine semidoppie per viti autofilettantiLogin to view
RPSD 10P.20.120.0910 P (4,8 mm)12.020.00.70,9 - 1,1FIAT 41891RPSD - piastrine semidoppie per viti autofilettantiLogin to view
RPSD 10P.20.120.1310 P (4,8 mm)12.020.00.71,0 - 2,0/RPSD - piastrine semidoppie per viti autofilettantiLogin to view
RPSD 10P.24.150.1210 P (4,8 mm)15.024.50.81,2 - 1,6/RPSD - piastrine semidoppie per viti autofilettantiLogin to view
RPSD 12P.26.160.1414 P (6,3 mm)16.026.00.81,4 - 2,2/RPSD - piastrine semidoppie per viti autofilettantiLogin to view
RPSD 14P.26.160.1414 P (6,3 mm)16.026.00,81,4 - 2,2/RPSD - piastrine semidoppie per viti autofilettantiLogin to view
