RPG
Cage nuts

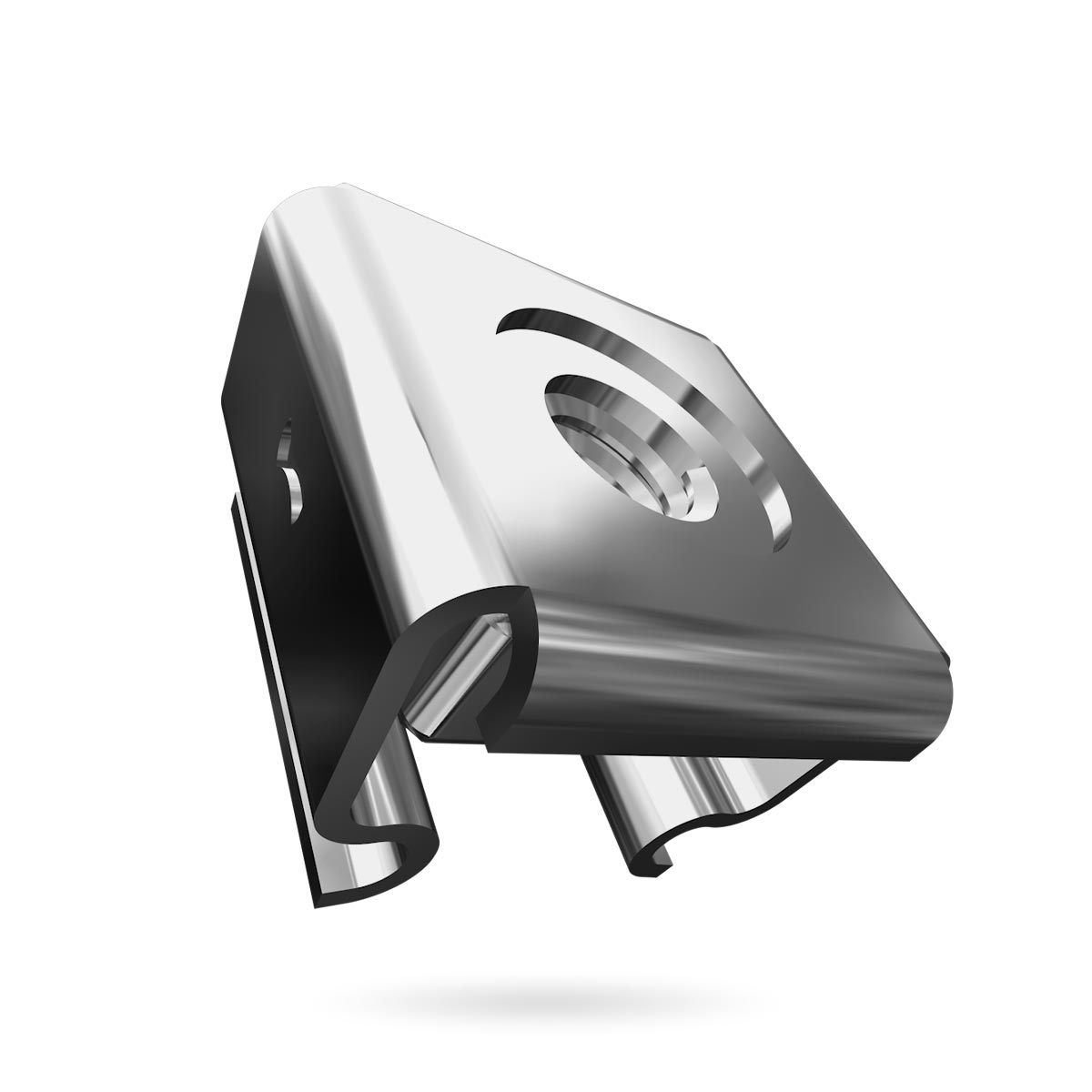

Cage nuts consisting of a square nut enclosed in an elastic cage, designed for easy mounting on laminates.

Add to quote

Elastic cage nuts for mounting on laminates

Our RPG cage nuts can be supplied with a variety of treatments and finishes on request, ranging from zinc plating to phosphating and dehydrogenation. The nut, free within the cage, helps eliminate play and misalignment during assembly. Available for metric screws from M3 to M10, they are designed for countless combinations of slot size and panel thickness.

RPG cage nuts technical drawing

RPG 03.09.09GI9,89,3M30,300,6 ÷ 0,95,3 x 5,3RPG - dadi in gabbia di fissaggio rapidoLogin to viewstainless steel cage - zinc plated nut
RPG 03.09.09I9,89,3M30,300,6 ÷ 0,95,3 x 5,3RPG - dadi in gabbia di fissaggio rapidoLogin to viewstainless steel cage and nut
RPG 03.09.16GI9,89,3M30,301,0 ÷ 1,65,3 x 5,3RPG - dadi in gabbia di fissaggio rapidoLogin to viewstainless steel cage - zinc plated nut
RPG 03.09.16I
9,89,3M30,301,0 ÷ 1,65,3 x 5,3RPG - dadi in gabbia di fissaggio rapidoLogin to viewstainless steel cage and nut
RPG 03.09.23GI9,89,3M30,301,7 ÷ 2,35,3 x 5,3RPG - dadi in gabbia di fissaggio rapidoLogin to viewstainless steel cage - zinc plated nut
RPG 03.09.23I9,89,3M30,301,7 ÷ 2,35,3 x 5,3RPG - dadi in gabbia di fissaggio rapidoLogin to viewstainless steel cage and nut
RPG 03.09.31GI9,89,3M30,302,4 ÷ 3,15,3 x 5,3RPG - dadi in gabbia di fissaggio rapidoLogin to viewstainless steel cage - zinc plated nut
RPG 03.09.31I9,89,3M30,302,4 ÷ 3,15,3 x 5,3RPG - dadi in gabbia di fissaggio rapidoLogin to viewstainless steel cage and nut
RPG 04.09.09GI9,89,3M40,300,6 ÷ 0,95,3 x 5,3RPG - dadi in gabbia di fissaggio rapidoLogin to viewstainless steel cage - zinc plated nut
RPG 04.09.09I9,89,3M40,300,6 ÷ 0,95,3 x 5,3RPG - dadi in gabbia di fissaggio rapidoLogin to viewstainless steel cage and nut
RPG 04.09.16GI9,89,3M40,301,0 v 1,65,3 x 5,3RPG - dadi in gabbia di fissaggio rapidoLogin to viewstainless steel cage - zinc plated nut
RPG 04.09.16I9,89,3M40,301,0 ÷ 1,65,3 x 5,3RPG - dadi in gabbia di fissaggio rapidoLogin to viewstainless steel cage and nut
RPG 04.09.23GI9,89,3M40,301,7 ÷ 2,35,3 x 5,3RPG - dadi in gabbia di fissaggio rapidoLogin to viewstainless steel cage - zinc plated nut
RPG 04.09.23I9,89,3M40,301,7 ÷ 2,35,3 x 5,3RPG - dadi in gabbia di fissaggio rapidoLogin to viewstainless steel cage and nut
RPG 04.09.31GI9,89,3M40,302,4 ÷ 3,15,3 x 5,3RPG - dadi in gabbia di fissaggio rapidoLogin to viewstainless steel cage - zinc plated nut
RPG 04.09.31I9,89,3M40,302,4 ÷ 3,15,3 x 5,3RPG - dadi in gabbia di fissaggio rapidoLogin to viewstainless steel cage and nut
RPG 04.10.20B8,310,3M40,501,0 ÷ 2,07,0 x 7,0RPG - dadi in gabbia di fissaggio rapidoLogin to viewzinc plated cage and nut
RPG 05.10.20B8,310,3M50,501,0 ÷ 2,08,3 x 8,3RPG - dadi in gabbia di fissaggio rapidoLogin to viewzinc plated cage and nut
RPG 05.12.16B12,011,4M50,500,7 ÷ 1,68,3 x 8,3RPG - dadi in gabbia di fissaggio rapidoLogin to viewzinc plated cage and nut
RPG 05.12.16GI12,011,4M50,450,7 ÷ 1,68,3 x 8,3RPG - dadi in gabbia di fissaggio rapidoLogin to viewstainless steel cage - zinc plated nut
RPG 05.12.16I12,011,4M50,450,7 ÷ 1,68,3 x 8,3RPG - dadi in gabbia di fissaggio rapidoLogin to viewstainless steel cage and nut
RPG 05.12.25B12,011,4M50,501.7 ÷ 2.58,3 x 8,3RPG - dadi in gabbia di fissaggio rapidoLogin to viewzinc plated cage and nut
RPG 05.12.25GI12,011,4M50,451.7 ÷ 2.58,3 x 8,3RPG - dadi in gabbia di fissaggio rapidoLogin to viewstainless steel cage - zinc plated nut
RPG 05.12.25I12,011,4M50,451,7 ÷ 2,58,3 x 8,3RPG - dadi in gabbia di fissaggio rapidoLogin to viewstainless steel cage and nut
RPG 05.13.16B13,512,7M50,500,7 ÷ 1,69,5 x 9,5RPG - dadi in gabbia di fissaggio rapidoLogin to viewzinc plated cage and nut
RPG 05.13.16GI13,512,7M50,500,7 ÷ 1,69.5 x 9.5RPG - dadi in gabbia di fissaggio rapidoLogin to viewstainless steel cage - zinc plated nut
RPG 05.13.16I13,512,7M50,450,7 ÷ 1,69,5 x 9,5RPG - dadi in gabbia di fissaggio rapidoLogin to viewstainless steel cage and nut
RPG 05.13.18B11,313,4M50,500,7 ÷ 1,89,0 x 9,0RPG - dadi in gabbia di fissaggio rapidoLogin to viewzinc plated cage and nut
RPG 05.13.26B13,512,7M50,501,7 ÷ 2,69.5 x 9.5RPG - dadi in gabbia di fissaggio rapidoLogin to viewzinc plated cage and nu
RPG 05.13.26GI13.512,7M50,501,7 ÷ 2,69.5 x 9.5RPG - dadi in gabbia di fissaggio rapidoLogin to viewstainless steel cage - zinc plated nut
RPG 05.13.26I13,512,7M50,500,7 ÷ 2,69,5 x 9,5RPG - dadi in gabbia di fissaggio rapidoLogin to viewstainless steel cage and nut
RPG 05.13.32B11,313,4M50,502,2 - 3,29,0 x 9,0RPG - dadi in gabbia di fissaggio rapidoLogin to viewzinc plated cage and nut
RPG 05.12.35B12,011,4M50,452,6 ÷ 3,58,3 x 8,3RPG - dadi in gabbia di fissaggio rapidoLogin to viewzinc plated cage and nut
RPG 05.12.35GI12,011,4M50,452,6 ÷ 3,58,3 x 8,3RPG - dadi in gabbia di fissaggio rapidoLogin to viewstainless steel cage - zinc plated nut
RPG 05.12.35I12,011,4M50,452,6 ÷ 3,58,3 x 8,3RPG - dadi in gabbia di fissaggio rapidoLogin to viewstainless steel cage and nut
RPG 06.12.16GI12,011,4M60,500,7 ÷ 1,68,3 x 8,3RPG - dadi in gabbia di fissaggio rapidoLogin to viewstainless steel cage - zinc plated nut
RPG 06.12.16I12,011,4M60,500,7 ÷ 1,68,3 x 8,3RPG - dadi in gabbia di fissaggio rapidoLogin to viewstainless steel cage and nut
RPG 06.12.25B12,011,4M60,451,7 ÷ 2,58,3 x 8,3RPG - dadi in gabbia di fissaggio rapidoLogin to viewzinc plated cage and nut
RPG 06.12.25GI12,011,4M60,451,7 ÷ 2,58,3 x 8,3RPG - dadi in gabbia di fissaggio rapidoLogin to viewstainless steel cage - zinc plated nut
RPG 06.12.25I12,011,4M60,451,7 ÷ 2,58,3 x 8,3RPG - dadi in gabbia di fissaggio rapidoLogin to viewstainless steel cage and nut
RPG 06.12.35B12,011,4M60,452,6 ÷ 3,58,3 x 8,3RPG - dadi in gabbia di fissaggio rapidoLogin to viewzinc plated cage and nut
RPG 06.12.35GI12,011,4M60,452,6 ÷ 3,58,3 x 8,3RPG - dadi in gabbia di fissaggio rapidoLogin to viewstainless steel cage - zinc plated nut
RPG 06.12.35I12,011,4M60,452,6 ÷ 3,58,3 x 8,3RPG - dadi in gabbia di fissaggio rapidoLogin to viewstainless steel cage and nut
RPG 06.13.16B13,512,7M60,501,7 ÷ 1,69,5 x 9,5RPG - dadi in gabbia di fissaggio rapidoLogin to viewzinc plated cage and nut
RPG 06.13.16GI13,512,7M60,501,7 ÷ 1,69,5 x 9,5RPG - dadi in gabbia di fissaggio rapido/stainless steel cage and zinc plated nut
RPG 06.13.16I13,512,7M60,500,7 ÷ 1,69,5 x 9,5RPG - dadi in gabbia di fissaggio rapidoLogin to viewstainless steel cage and nut
RPG 06.13.18B11,313,4M60,500,7 ÷ 1,89,0 x 9,0RPG - dadi in gabbia di fissaggio rapidoLogin to viewzinc plated cage and nut
RPG 06.13.26B13,512,7M60,501,7 ÷ 2,69,5 x 9,5RPG - dadi in gabbia di fissaggio rapidoLogin to viewzinc plated cage and nut
RPG 06.13.26GI13,512,7M60,501,7 ÷ 2,69,5 x 9,5RPG - dadi in gabbia di fissaggio rapido/stainless steel cage and zinc plated nut
RPG 06.13.26I13,512,7M60,451,7 ÷ 2,69,5 x 9,5RPG - dadi in gabbia di fissaggio rapidoLogin to viewstainless steel cage and nut
RPG 06.13.32B11,313,4M60,502,2 ÷ 3,29,0 x 9,0RPG - dadi in gabbia di fissaggio rapidoLogin to viewzinc plated cage and nut
RPG 06.15.22B13,015,3M60,501,2 ÷ 2,211,0 x 11,0RPG - dadi in gabbia di fissaggio rapidoLogin to viewzinc plated cage and nut
RPG 08.16.17GI16,515,5M80,600,7 ÷ 1,712,3 x 12,3RPG - dadi in gabbia di fissaggio rapido/stainless steel cage and inc plated nut
RPG 08.16.17I16,515,5M80,600,7 ÷ 1,712,3 x 12,3RPG - dadi in gabbia di fissaggio rapido/stainless steel cage and nut
RPG 08.16.20B14,316,0M80,600,7 ÷ 2,013,0 x 13,0RPG - dadi in gabbia di fissaggio rapidoLogin to viewzinc plated cage and nut
RPG 08.16.32GI16,515,5M80,601,8 ÷ 3,212,3 x 12,3RPG - dadi in gabbia di fissaggio rapido/stainless steel cage and inc plated nut
RPG 08.16.32I16,515,5M80,601,8 ÷ 3,212,3 x 12,3RPG - dadi in gabbia di fissaggio rapido/stainless steel cage and nut
RPG 08.16.35B14,316,0M80,602,0 ÷ 3,513,0 x 13,0RPG - dadi in gabbia di fissaggio rapidoLogin to viewzinc plated cage and nut
RPG 08.16.47GI16,515,5M80,603,3 ÷ 4,712,3 x 12,3RPG - dadi in gabbia di fissaggio rapido/stainless steel cage and inc plated nut
RPG 08.16.47I16,515,5M80,603,3 ÷ 4,712,3 x 12,3RPG - dadi in gabbia di fissaggio rapido/stainless steel cage and nut
RPG 10.16.20B14,316,0M100,600,7 ÷ 2,013,0 x 13,0RPG - dadi in gabbia di fissaggio rapidoLogin to viewzinc plated cage and nut
RPG 10.16.35B14,316,0M100,602,0 ÷ 3,513,0 x 13,0RPG - dadi in gabbia di fissaggio rapidoLogin to viewzinc plated cage and nut
