RPCO
Crownlock retaining washers

RPCO crownlock washers are specially designed to be installed on smooth shafts or pins without grooves.

CODE

Clear

Aggiungi al preventivo

Description

Custom retaining washers available in a wide range of custom sizes

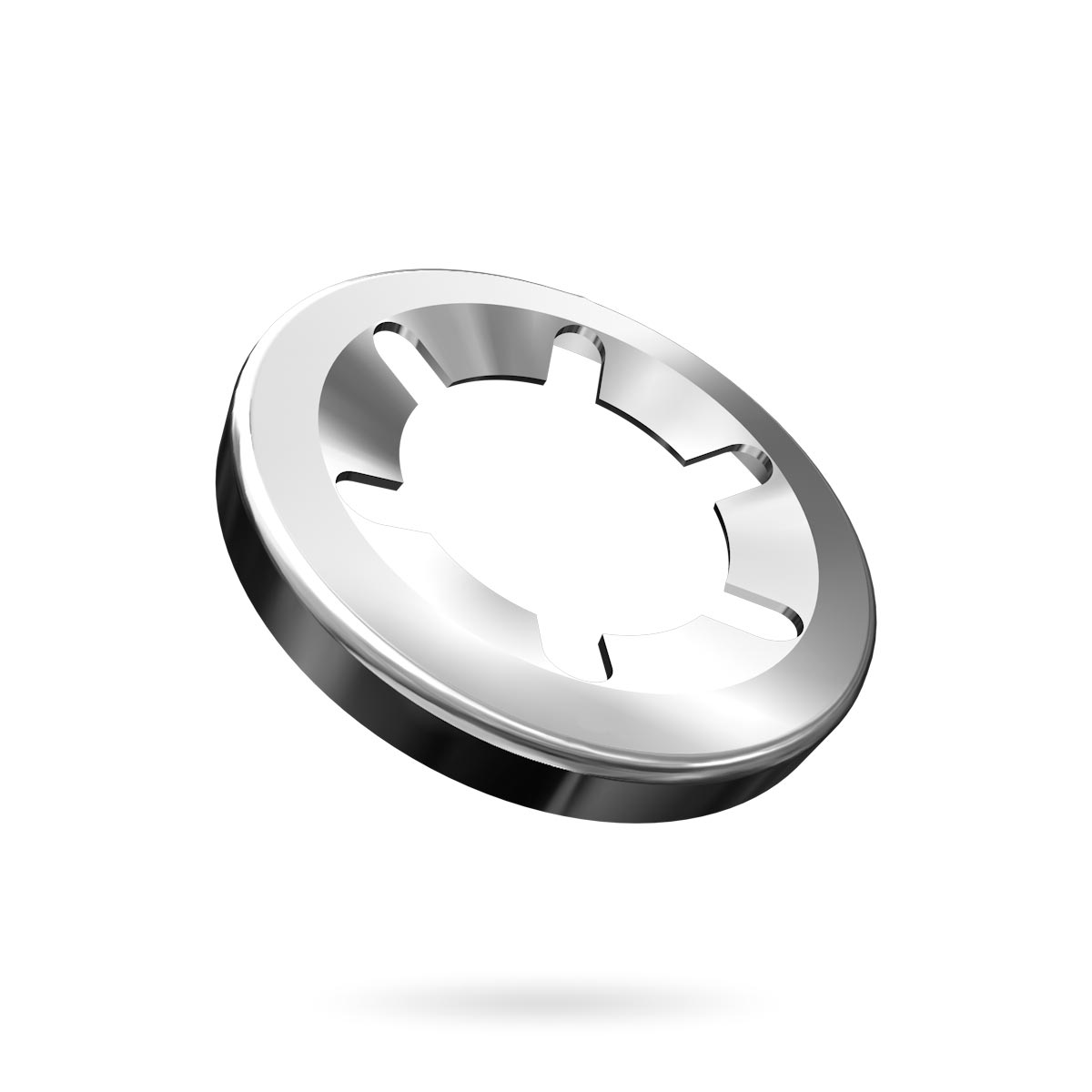

RPCO push-on fasteners are specially designed to be installed on smooth shafts or pins without grooves, in both metal and plastic applications. These retaining ring washers, also used as circular uncapped push-on fasteners for shafts, feature a distinctive circular “crown” profile along the edge that provides excellent grip and high resistance to pull-out. Our RPCO crownlock retaining washers are available in sizes ranging from 3 to 32 mm, including stainless steel versions. Depending on the diameter, the pull-out resistance can exceed 500 kg. Also available in stainless steel and with finishes upon request.

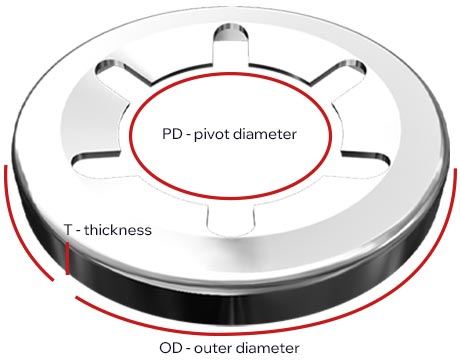

RPCO cronwlock retaining washer technical drawing


RPCO 3.020.09	2,0	9,0	0,2	/	Login to view
RPCO 3.020.11	2,0	11,0	0,2	/	Login to view
RPCO 3.025.09	2,5	9,0	0,2	/	Login to view
RPCO 3.025.09I	2,5	9,0	0,2	stainless steel	Login to view
RPCO 3.030.09	3,0	9,0	0,2	/	Login to view
RPCO 3.030.11	3,0	10,9	0,2	/	Login to view
RPCO 3.030.11I	3,0	10,9	0,2	stainless steel	Login to view
RPCO 3.031.09	3,1	9,0	0,2	/	Login to view
RPCO 3.032.09	3,2	9,0	0,2	/	Login to view
RPCO 3.040.11	4,0	10,9	0,2	/	Login to view
RPCO 3.040.11I	4,0	10,9	0,2	stainless steel	Login to view
RPCO 3.040.12	4,0	11,5	0,2	/	Login to view
RPCO 3.040.12I	4,2	11,5	0,2	stainless steel	Login to view
RPCO 3.040.15	4,0	15,0	0,3	/	Login to view
RPCO 3.050.11	5,0	10,9	0,2	/	Login to view
RPCO 3.050.11I	5,0	10,9	0,2	stainless steel	Login to view
RPCO 3.050.11SV	5,0	10,9	0,2	svasata / countersunk	Login to view
RPCO 3.050.11.30	5,0	10,9	0,3	extra resistente heavy duty	Login to view
RPCO 3.050.12	5,0	11,5	0,2	/	Login to view
RPCO 3.050.12I	5,0	11,5	0,2	stainless steel	Login to view
RPCO 3.050.15	5,0	15,0	0,3	/	Login to view
RPCO 3.050.15I	5,0	15,0	0,3	stainless steel	Login to view
RPCO 3.054.15	5,4	15,0	0,3	/	Login to view
RPCO 3.060.15	6,0	15,0	0,3	/	Login to view
RPCO 3.060.15.40	6,0	15,0	0,4	extra resistente heavy duty	Login to view
RPCO 3.060.15I	6,0	15,0	0,25	stainless steel	Login to view
RPCO 3.060.15SV	6,0	15,0	0,25	svasata / countersunk	Login to view
RPCO 3.060.20	6,0	20,5	0,3	/	Login to view
RPCO 3.065.15	6,5	15,0	0,3	/	Login to view
RPCO 3.067.15	6,7	15,0	0,3	/	Login to view
RPCO 3.070.15	7,0	15,0	0,3	/	Login to view
RPCO 3.070.15I	7,0	15,0	0,25	stainless steel	Login to view
RPCO 3.072.15	7,2	15,0	0,3	/	Login to view
RPCO 3.076.15	7,6	15,0	0,3	/	Login to view
RPCO 3.079.15	7,9	15,0	0,3	/	Login to view
RPCO 3.080.15	8,0	15,0	0,3	/	Login to view
RPCO 3.080.15.40	8,0	15,0	0,4	extra resistente heavy duty	Login to view
RPCO 3.080.15I	8,0	15,0	0,25	stainless steel	Login to view
RPCO 3.080.20	8,0	20,5	0,3	/	Login to view
RPCO 3.082.15	8,2	15,0	0,3	/	Login to view
RPCO 3.085.20	8,5	20,5	0,3	/	Login to view
RPCO 3.090.18	9,0	18,0	0,3	/	Login to view
RPCO 3.090.18I	9,0	18,0	0,3	stainless steel	Login to view
RPCO 3.095.18	9,5	18,0	0,3	/	Login to view
RPCO 3.095.18I	9,0	18,0	0,3	stainless steel	Login to view
RPCO 3.100.18	10,0	18,0	0,3	/	Login to view
RPCO 3.100.18.40	10,0	18,0	0,4	extra resistente heavy duty	Login to view
RPCO 3.100.18I	10,0	18,0	0,3	stainless steel	Login to view
RPCO 3.100.18SV	10,0	19,3	0,3	svasata / countersunk	Login to view
RPCO 3.100.18SVI	10,0	19,3	0,3	svasata / countersunk stainless steel	Login to view
RPCO 3.105.18	10,5	18,0	0,3	/	Login to view
RPCO 3.105.18.40	10,5	18,0	0,4	extra resistente heavy duty	Login to view
RPCO 3.110.18	11,0	18,0	0,3	/	Login to view
RPCO 3.110.18.40	11,0	18,0	0,4	extra resistente heavy duty	Login to view
RPCO 3.110.18I	11,0	18,0	0,3	stainless steel	Login to view
RPCO 3.120.18	12,0	18,0	0,4	on request	Login to view
RPCO 3.120.25	12,0	25,0	0,4	/	Login to view
RPCO 3.120.25I	12,0	25,0	0,4	stainless steel	Login to view
RPCO 3.130.25	13,0	25,0	0,4	/	Login to view
RPCO 3.130.25I	13,0	25,0	0,4	stainless steel	Login to view
RPCO 3.138.25	13,8	25,0	0,4	/	Login to view
RPCO 3.140.25	14,0	25,0	0,4	/	Login to view
RPCO 3.140.25I	14,0	25,0	0,4	stainless steel	Login to view
RPCO 3.150.25	15,0	25,0	0,4	/	Login to view
RPCO 3.150.25I	15,0	25,0	0,4	stainless steel on request	Login to view
RPCO 3.150.28	15,0	28,0	0,4	/	Login to view
RPCO 3.160.25	16,0	25,0	0,4	/	Login to view
RPCO 3.160.25I	16,0	25,0	0,4	stainless steel	Login to view
RPCO 3.160.28	16,0	28,0	0,4	/	Login to view
RPCO 3.170.28	17,0	28,0	0,4	/	Login to view
RPCO 3.180.28	18,0	28,0	0,4	/	Login to view
RPCO 3.180.28I	18,0	28,0	0,4	stainless steel	Login to view
RPCO 3.180.36	18,0	36,2	0,4	/	Login to view
RPCO 3.190.36	19,0	36,2	0,4	/	Login to view
RPCO 3.200.36	20,0	36,2	0,4	/	Login to view
RPCO 3.200.36I	20,0	36,2	0,4	stainless steel	Login to view
RPCO 3.210.36	21,0	36,2	0,4	/	Login to view
RPCO 3.220.36	22,0	36,2	0,4	/	Login to view
RPCO 3.220.36I	22,0	36,2	0,4	stainless steel	Login to view
RPCO 3.230.36	23,0	36,2	0,4	/	Login to view
RPCO 3.240.36	24,0	36,2	0,4	/	Login to view
RPCO 3.240.41	24,0	41,2	0,5	/	Login to view
RPCO 3.240.41I	24,0	41,2	0,5	stainless steel	Login to view
RPCO 3.250.41	25,0	41,2	0,5	/	Login to view
RPCO 3.250.41I	25,0	41,2	0,5	stainless steel	Login to view
RPCO 3.280.44	28,0	44,0	0,5	/	Login to view
RPCO 3.280.50	28,0	50,0	0,5	/	Login to view
RPCO 3.300.44	30,0	44,0	0,5	/	Login to view
RPCO 3.300.50	30,0	50,0	0,5	/	Login to view
RPCO 3.310.50	31,0	50,0	0,5	on request	Login to view
RPCO 3.320.44	32,0	44,0	0,5	/	Login to view
RPCO 3.320.50	32,0	50,0	0,5	/	Login to view
